Xunison iOS Application
...
Z- Wave Devices
Exclude Z-Wave Device

Another Way To Exclude The Z-Wave Device

4min

There is an alternative approach to removing a Z-wave device from the home gateway.

Note:

Upon logging in to your Xunison Application, you will be automatically directed to the home gateway. To continue, select the home gateway and proceed further.

Document image
īģŋ

īģŋ

Step 1: Device Section

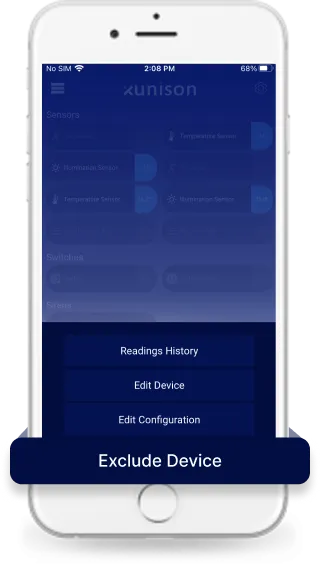

In the device section, perform a long press on the device you wish to exclude, and then select "Exclude Device."

Exclude the Device
Exclude the Device
īģŋ

īģŋ

Step 2: Confirm to exclude the Device

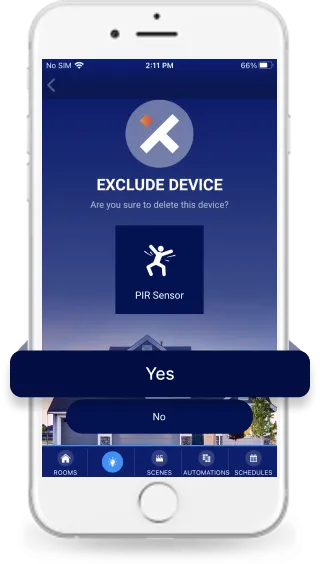

Please confirm by pressing "Yes."

Exclude
Exclude
īģŋ

īģŋ

Step 3: Excluding Device

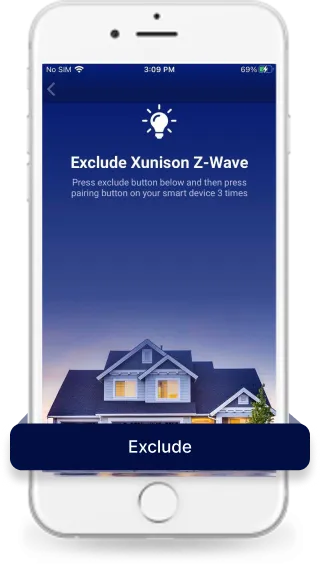

To exclude the Z-Wave device, press the "Exclude" button and then quickly press the pair button 3 times within a 1.5-second timeframe.

Excluding Device
Excluding Device
īģŋ

īģŋ

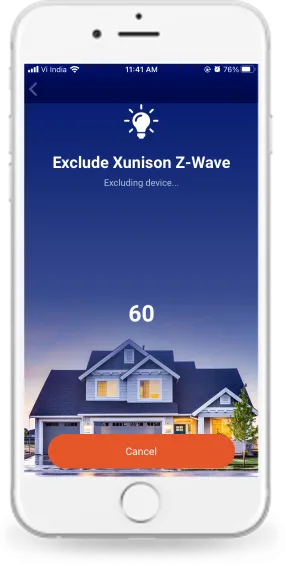

After a timeout of 60 seconds, the device will be successfully excluded from the Home Gateway.

Device is excluded
Device is excluded
īģŋ

īģŋ

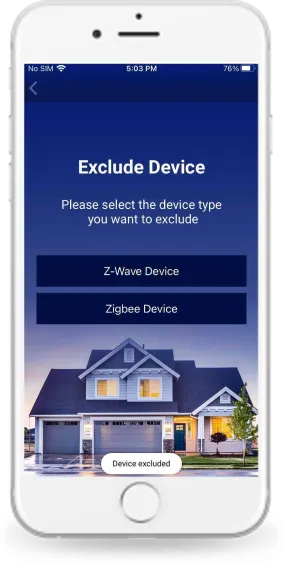

The exclusion of the device was successful.

Excluded successfully
Excluded successfully
īģŋ

īģŋ

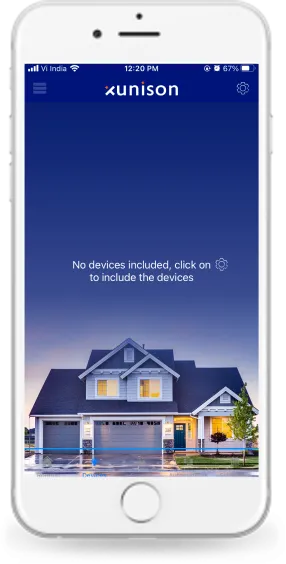

Upon navigating to the Device section, you will observe that the device has been excluded successfully.

Excluded successfully
Excluded successfully
