How to Set up Repeater Mode?

 To set up the repeater, the Xunison router must have internet access.

Note: To access the Xunison application, please log in using your registered credentials. When you log in to your Xunison Application, you'll be taken straight to the home gateway page To continue, select the home gateway and proceed further.



After selecting the home gateway, you'll be redirected to the smart home devices screen.

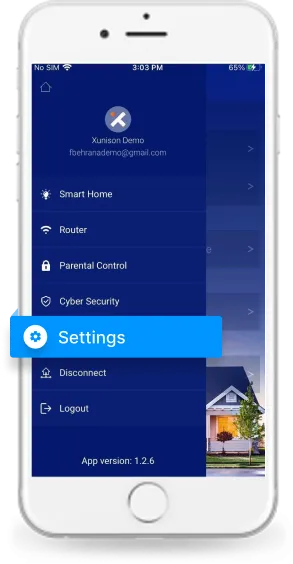

Go to the left menu and select "Settings."

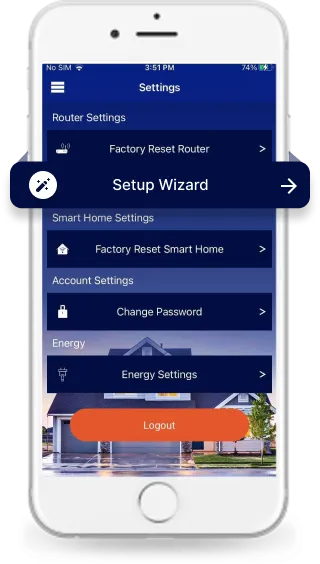

Navigate to the settings section and choose the "Set up Wizard".

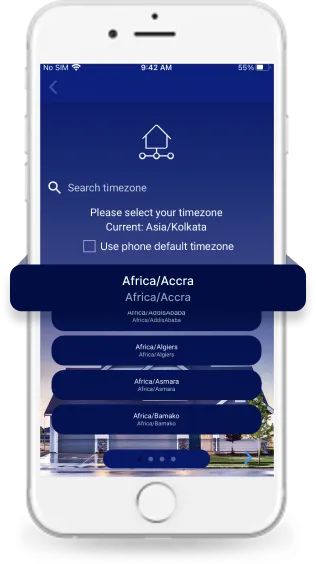

Select the your "Timezone" from this menu and then press the ">" button located on the right-hand corner.

You have the option to select the default time zone of your phone.

To continue, click on the swipe arrow.



Tap on the ">" icon located on the right-hand corner.

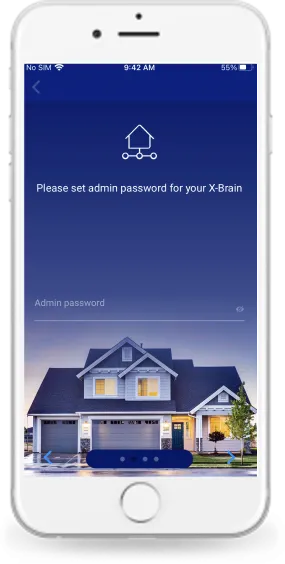

Here you can set your router admin password.

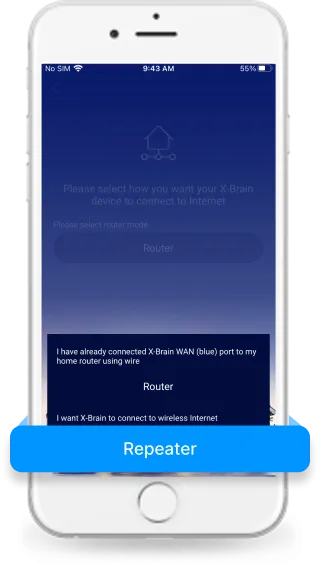

Tap on the "Router mode" and choose the "Repeater". Then, press the ">" button located on the right-hand corner.

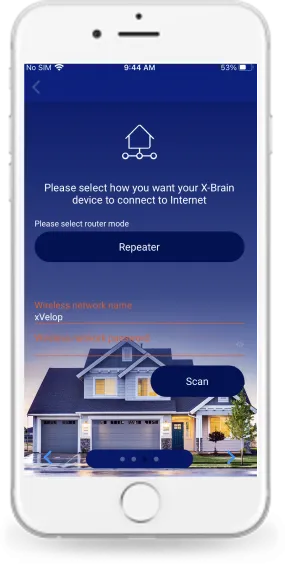

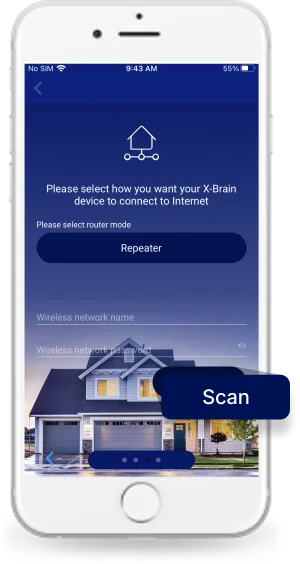

Click the "Scan" button.

Important:

Avoid choosing the xunison router wifi network for setting up the repeater mode.

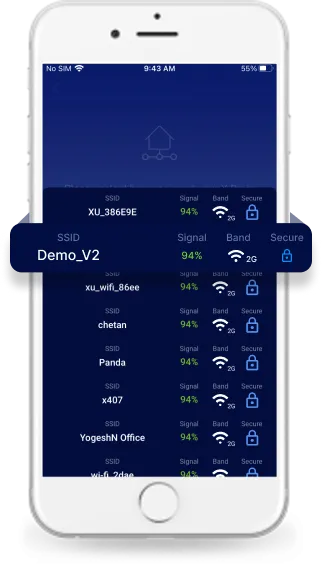

Choose the Wi-Fi network from the wifi network list.

Input the accurate password for the chosen network in this field and click ">" located on the right-hand side.

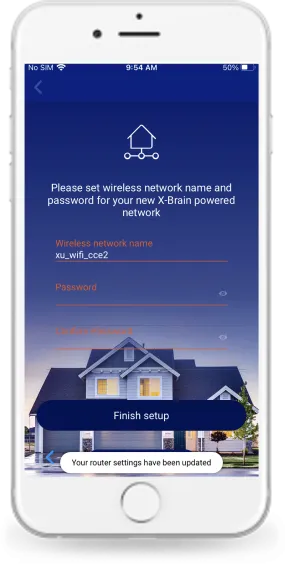

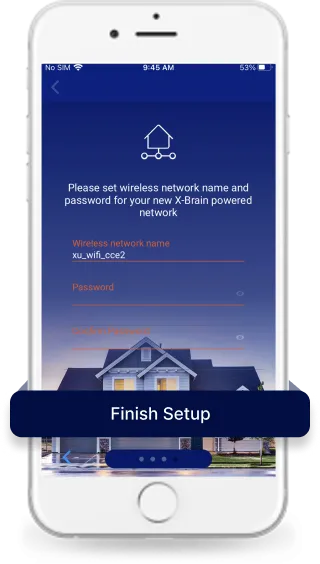

To finalize the setup process, click on the "Finish Setup" button, which may take approximately 6 to 7 minutes to complete the wizard.



The router settings have been updated successfully.

Please be aware that once the repeater mode is configured, it is necessary to disconnect the WAN cable from the router.
