Xunison iOS Application
...
Router Management
Mesh Mode

How to Set up Mesh Mode?

10min

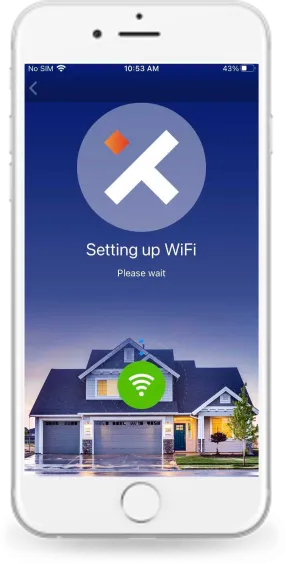

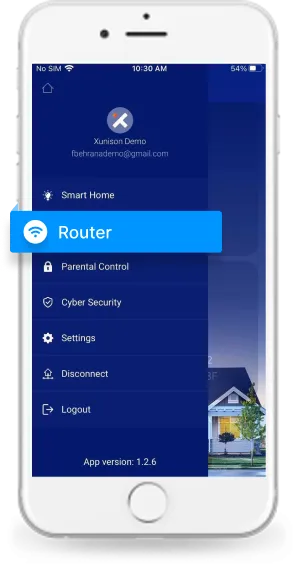

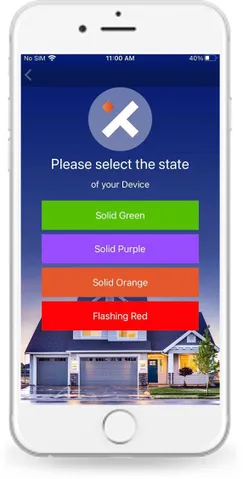

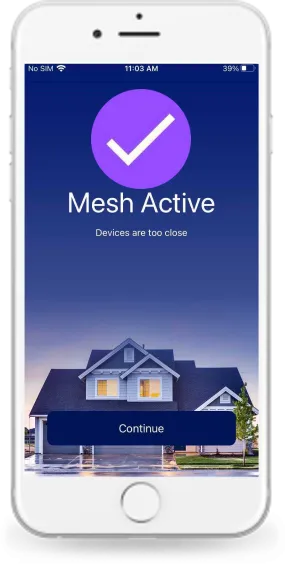

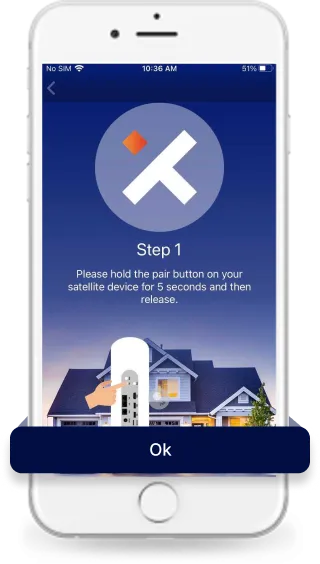

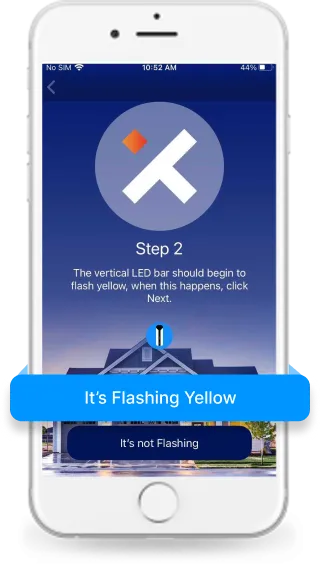

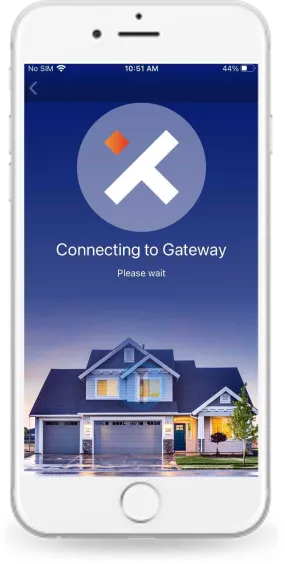

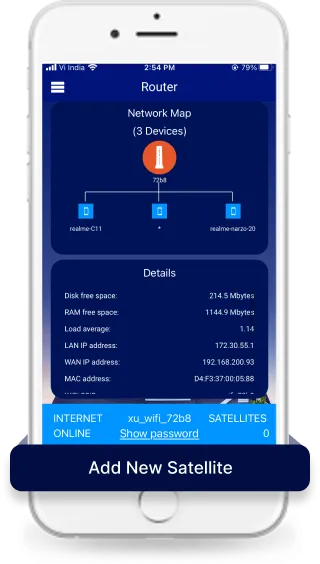

this section provides information about how to configure a mesh router note 1) connect the main router with the power and ethernet cables 2\) connect the secondary router only with a power cable 3\) keep a minimum distance of 3 to 4 meters and a maximum of 30 to 35 meters between the two routers to set up the mesh router, follow the steps below note upon logging in to your xunison application , you will be automatically directed to the home gateway to continue, select the home gateway and proceed further step 1 home screen once you have chosen the home gateway, the smart home devices screen will become visible step 2 select "router" select "router" from the left menu step 3 "add satellite" click on "add satellite" step 4 press the pair button hold down the pair button on the "secondary router" for 10 15 seconds, like it shows in the picture afterward, click "ok " step 5 choose the led when the "secondary router" starts flashing yellow, pick the option that says "it's flashing yellow," just like in the picture pairing is in the process the picture shows how the satellite device is connecting to the main gateway the secondary router initiates the negotiation process and proceeds to establish the wi fi connection setup step 6 select the mesh led choose the mesh led color that matches what you observe on the secondary router solid green solid green the signal strength is excellent solid purple solid purple the devices are positioned too closely together it is recommended to move the device farther apart to ensure optimal network coverage solid orange solid orange the devices are positioned too far apart it is advised to move the device closer to improve the coverage additionally, please note that the led will change accordingly flashing red flashing red the pairing process has timed out, so we will need to initiate the pairing again please take note and select the led indicator color that is currently displayed on the secondary router please take note and select the led indicator color that is currently displayed on the secondary router step 7 mesh is setup the setup of the mesh network has been successfully completed please click on "continue" to finish step 8 wi fi mesh graph the mesh network has been established successfully note you can also obtain information such as mac address, ip address, and more note you can also obtain information such as mac address, ip address, and more by tapping on the secondary router, you can check its speed
