How to Setup Repeater Mode

With your Android TV, you can easily set up a repeater mode. A repeater is a device that receives a signal and retransmits it, helping to extend transmission distances and overcome obstacles. This feature allows you to enhance the coverage and range of your network, ensuring seamless connectivity throughout your home.

 In order to set up the repeater, the Xunison router must have internet access.

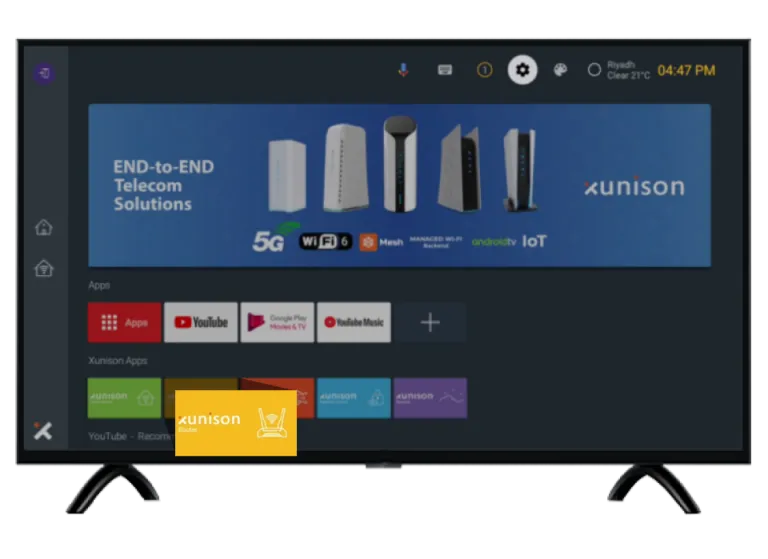

Choose the "Router App" from the ATV dashboard.

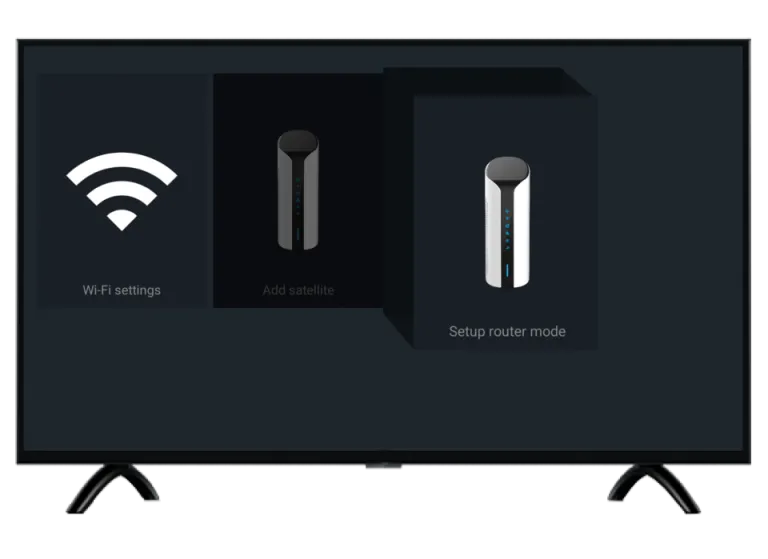

Choose "Setup Router Mode" from the available options.

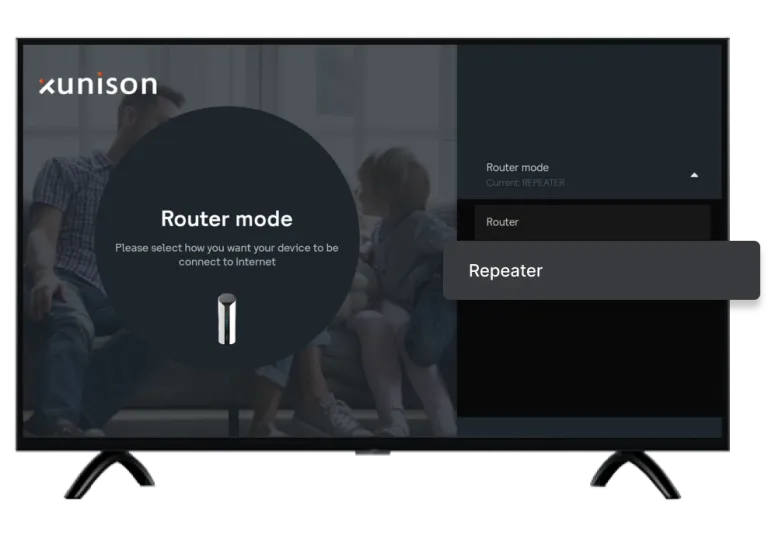

Click on "Router Mode" and then choose "Repeater" from the available options.

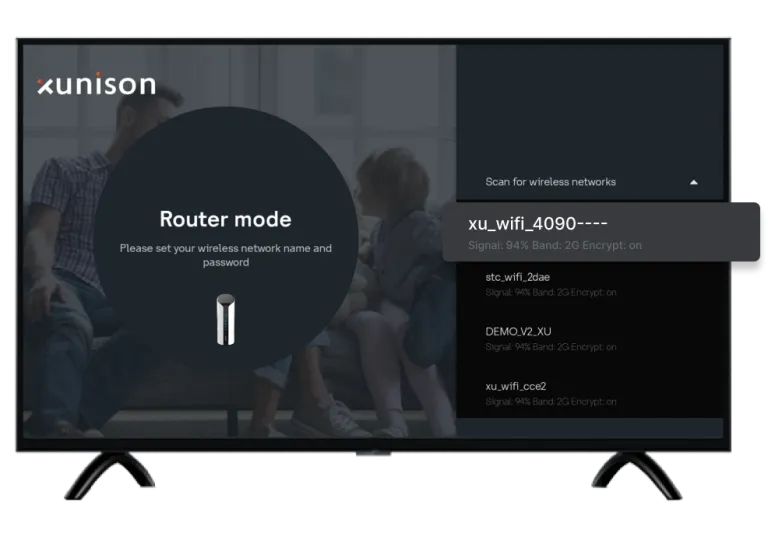

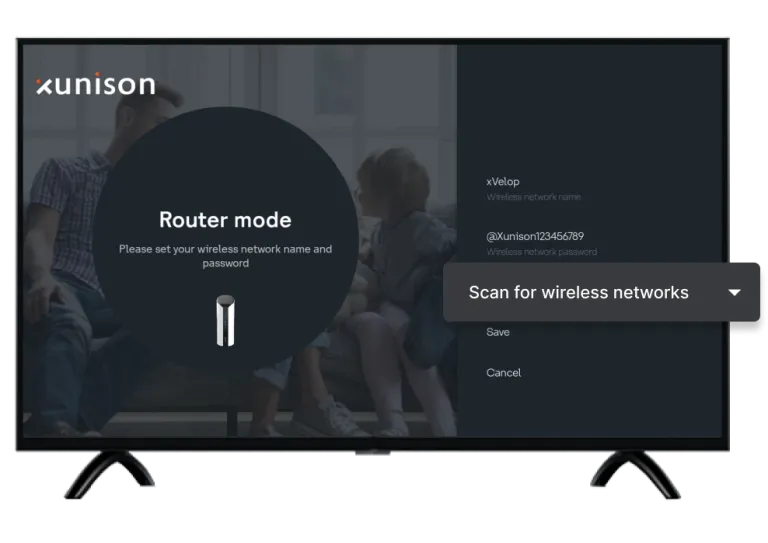

Initiate the process of scanning for wireless networks.



Choose the SSID (e.g., your ISP router's SSID) from the list of available networks to set up the repeater mode.

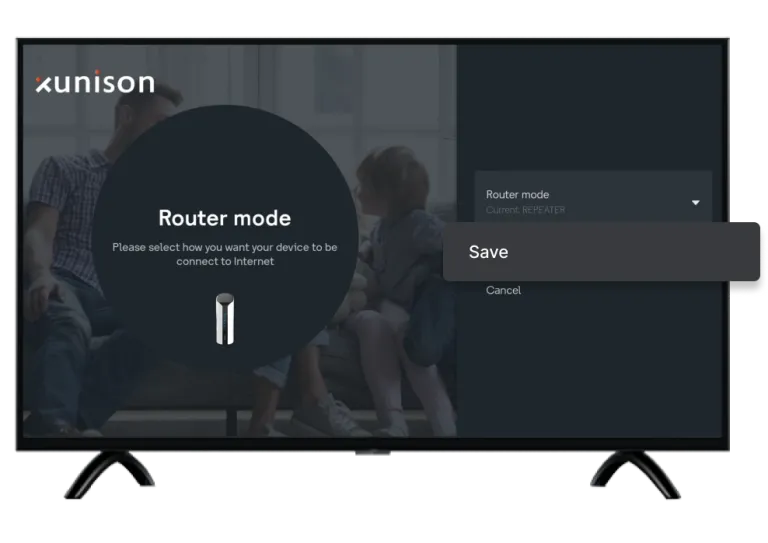

Enter the password and click on "Save" to finalize the configuration.

The repeater mode will be set up successfully.

Note: Once the repeater mode is configured, it is necessary to disconnect the WAN cable from the router.
