Xunison iOS Application
...
Smart Home
Zigbee Devices

Include Zigbee Devices

6min

You have the option to incorporate the Zigbee device into your smart home device independently. Simply follow the provided instructions to add a Zigbee device.

Note:

Upon logging in to your Xunison Application, you will be automatically directed to the home gateway. To continue, select the home gateway and proceed further.

Document image




Step 1: Select the "Settings" icon

Once you have chosen the home gateway, the Devices section will become visible.

To access it, click on the "Settings" icon located at the top right corner of the screen.

Settings
Settings

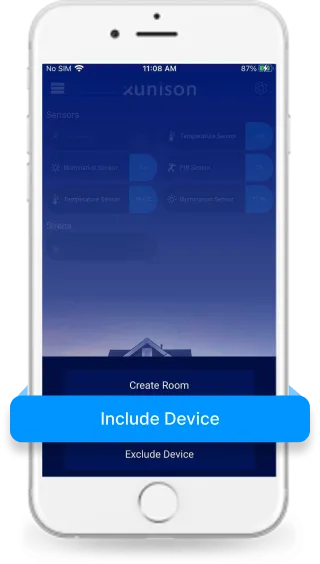

Step 2: Select Include Device

Choose the "Include Device" option.

Select Include device
Select Include device

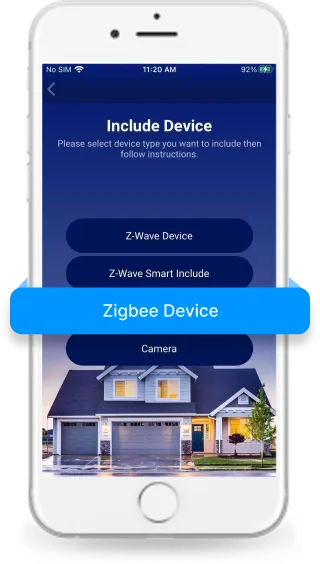

Step 3: Select Zigbee

Choose the "Zigbee Device" option.

Select Zigbee
Select Zigbee

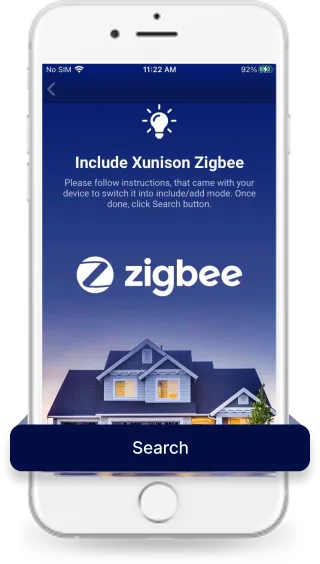

Step 4: Search Device

Click on the "Search" button, then use a pin to press and hold the resetting hole on the ZigBee device for 5-10 seconds.

Search
Search

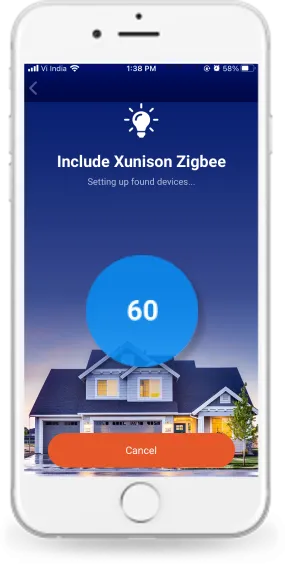

The device is currently in pairing mode.

Device in pairing mode
Device in pairing mode

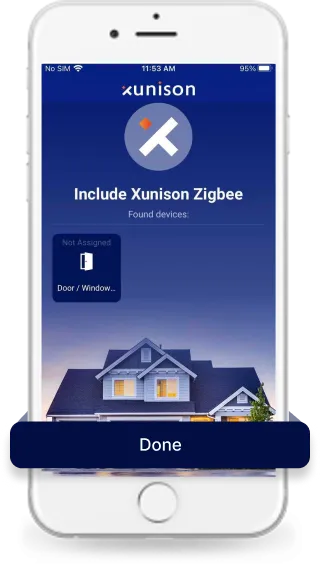

Step 5: Device Included

You will notice that the Door/Window sensor has been successfully added.

Please click on "Done."

Device Included
Device Included

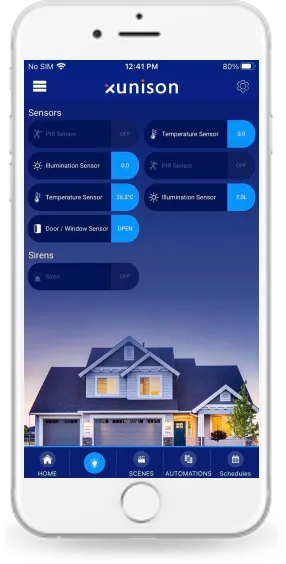

Devices Section

In the Devices Section, you will find the Door/Window sensor listed.

Devices section
Devices section




Updated 10 Aug 2023
