Xunison iOS Application
Provisioning of the Home Gateway
13 min

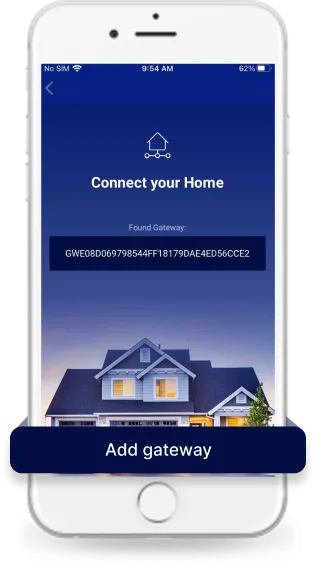

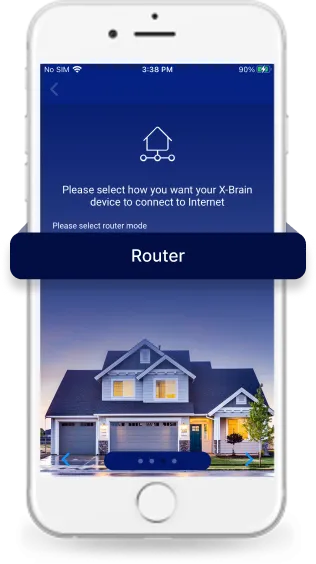

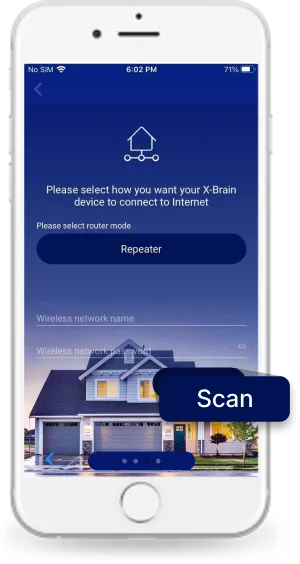

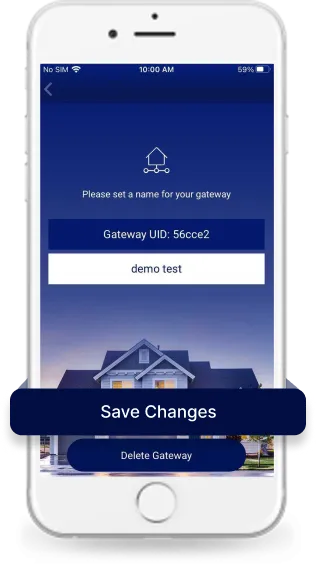

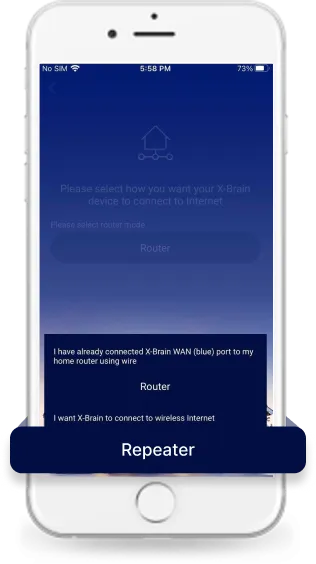

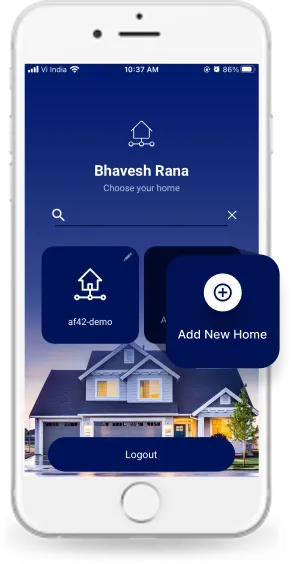

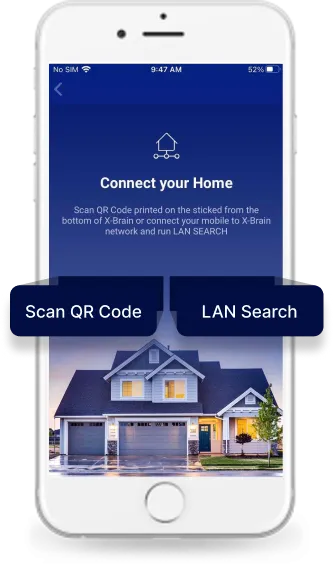

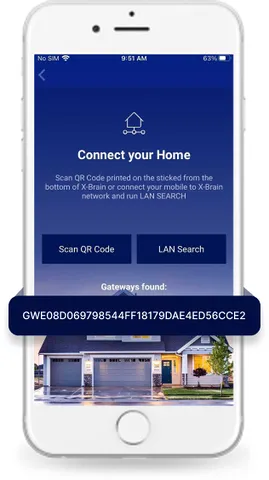

gateway provisioning refers to the configuration of a network, enabling authorized users, devices, and servers to connect to it this entails integrating a gateway into the application, accomplished either through qr code scanning or by conducting a lan search within the application please follow the steps below to provision the account to your gateway note note either follow the router mode from step 8a or repeater mode from step 8b to complete the wizard either follow the router mode from step 8a or repeater mode from step 8b to complete the wizard step 1 add new home click the option labeled "add new home" step 2 scan qr code or lan search choose either "scan qr code" or "lan search" to link the gateway to your account 1\) select the option "scan qr code" and use your device's camera to scan the qr code located at the bottom of the router or 2\) lan search by selecting "lan search," you can gain access to the gateway step 3 scan the qr code after scanning the qr code , a gateway was detected click on the gateway to proceed step 4 add gateway the gateway uid will be displayed as shown below choose "add gateway" to proceed further step 5 set gateway name set a gateway name and click on the "save changes" button step 6 select timezone choose your desired time zone and click on the ">" button or you have the option to select the phone's default time zone to do so, click on the checkbox next to " use phone's default time zone" and then press the ">" button step 7 admin password in this step, you can choose to either keep the default password or set up a new one click on the ">" button to proceed step 8a select router mode choose the router mode and then tap the ">" button to proceed click on the "finish setup" button setup updated the router settings have been successfully updated step 8b repeater mode you also have the option to select the repeater mode tap on the router mode and choose the repeater mode step 9 scan the network click on the "scan" button choose the desired wi fi network from the available options to which you would like to extend your network step 10 enter the password enter the correct password for the selected network and proceed by clicking the ">" button step 11 finish setup here you can also setup wireless network name and password, click on the "finish setup" button to finalize the setup process please note that it may take approximately 3 to 4 minutes to complete
