Xunison Hub Q50 Mesh Router Set up
๏ปฟ
Congratulations on your purchases! You've made a smart decision to make your home Wi-Fi better with the Xunison Hub Q50 Home router and Xunison Hub Q50 Mesh Router.
Xunison Hub Q50 Home router: - Xunison introduces a fast Wi-Fi 6 Mesh system that provides speeds up to 5400 Mbps, offering a great user experience with the use of Matter technology.
Xunison Hub Q50 Mesh Router: - Experience seamless and speedy connectivity with the Xunison Hub Q50 Mesh Router. Powered by Wi-Fi 6 technology, this helps expand network coverage in your home, getting rid of areas with no signal. It also provides faster data transfer, less waiting time, and easy connection for multiple devices at the same time.

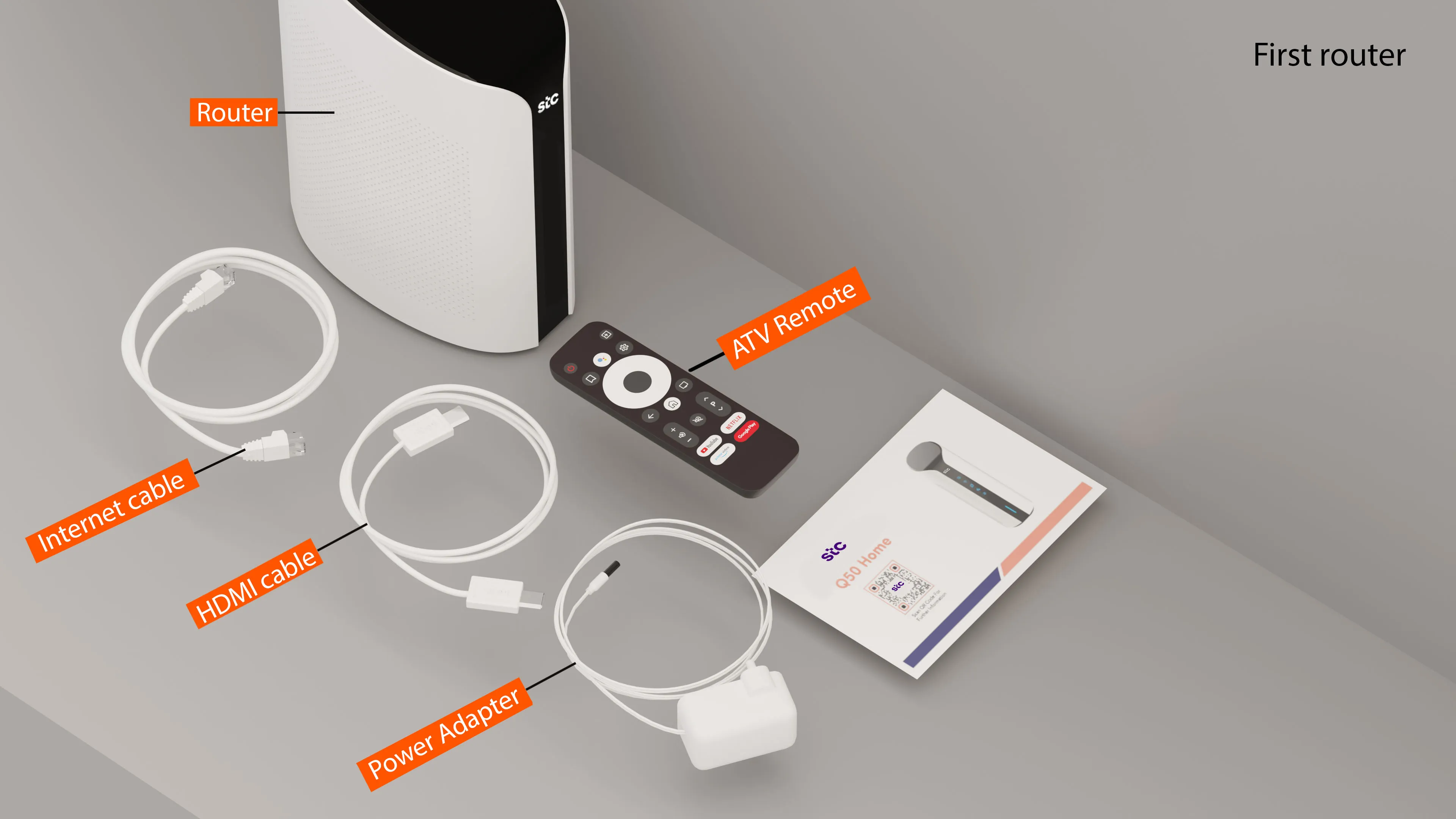

Xunison Hub Q50 Home router: - When you open the Main/Master router box, you'll find accessories like a Power Adapter, Ethernet cable, HDMI cable, Android TV remote, and a Welcome Card.
Xunison Hub Q50 Mesh Router: - Upon unboxing the Second/Booster/Sub/Extender router box, you will find accessories such as a power adapter, an Ethernet cable, and a welcome card.
How to Setup Main/Master Router?

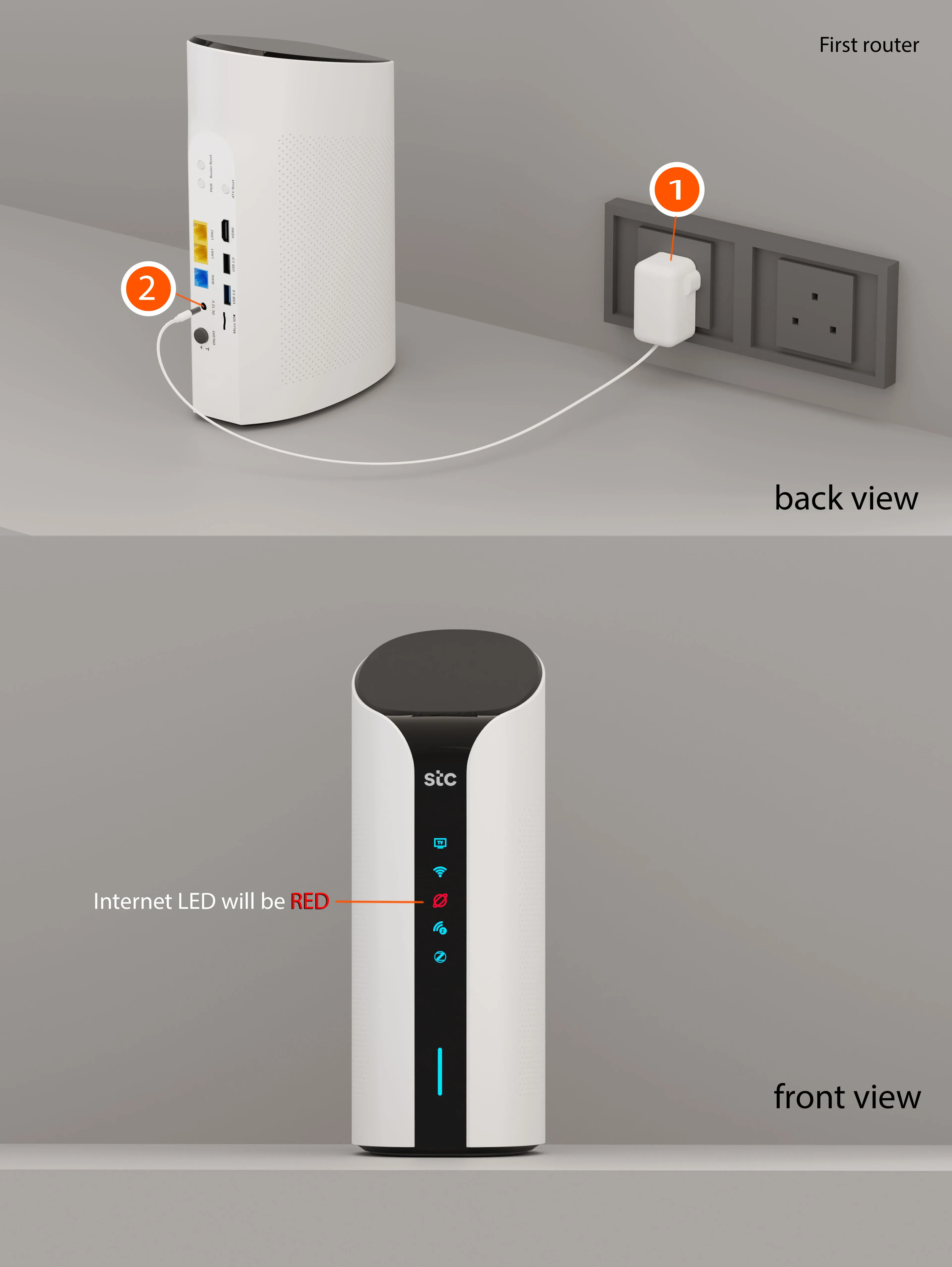

Step 01 Plug in the Power Adaptor
- Connect one end of the power adaptor to the wall socket and the other end to the back side of the First router (DC -12v)
- The LED lights will turn blue once the router has been plugged in with the power supply. (within a few minutes)
Note: Only the internet LED on the First Router router will be RED, and it will turn BLUE after the internet connection is established.
Step 02 Internet connection
ย Pre-Condition for Internet connection
โข You'll need an Ethernet Cable (also called Internet Cable). โข You should have access to your main internet source (ISP Network). โข Make sure your internet plan is active with your ISP Network.

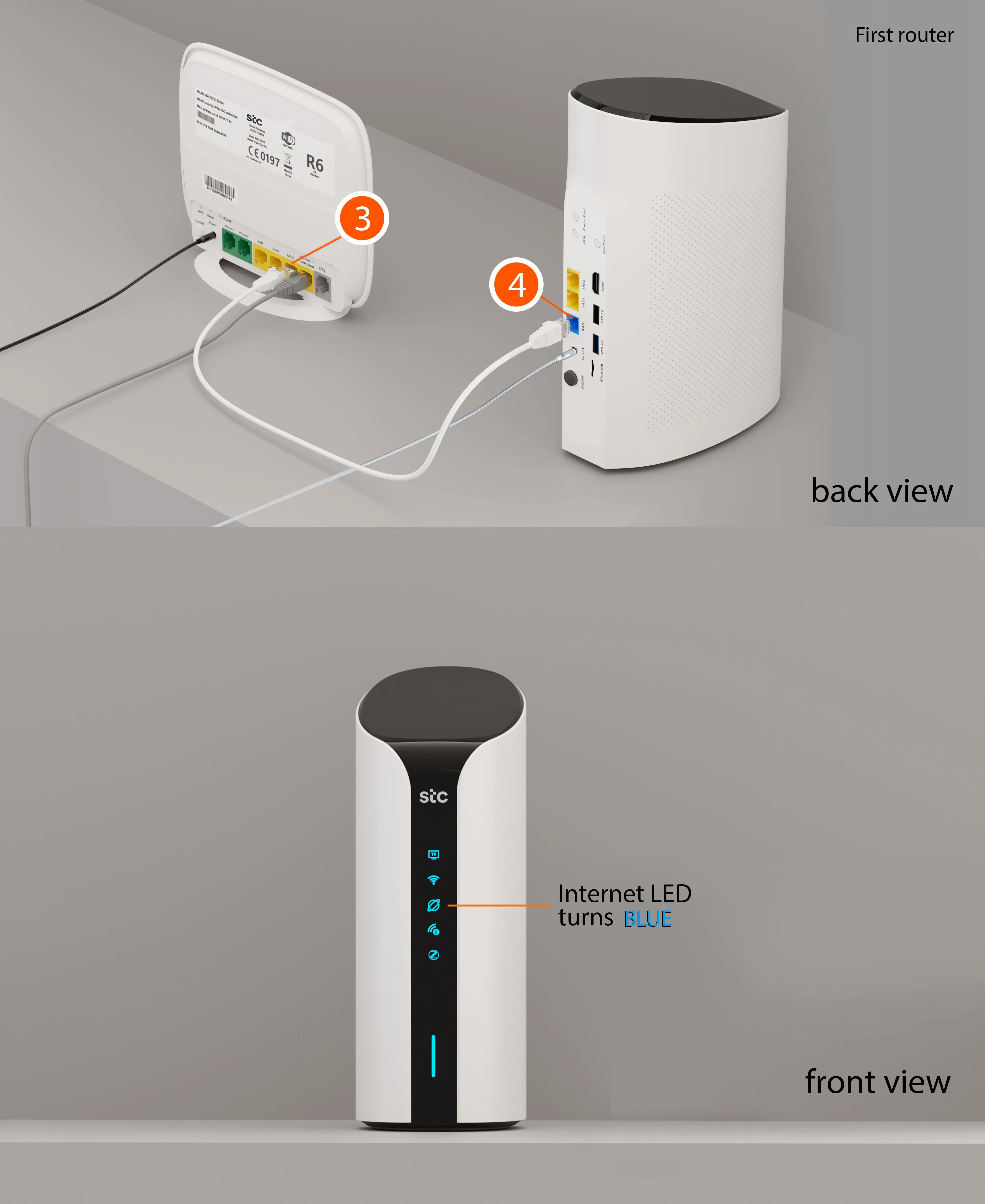

- Connect your Ethernet cable to the Yellow/LAN port of your main Internet source (ISP)ย
- Then plug the other end of the cable into the Blue/WAN port of your first router.
- Your Router will be Successfully Connected - make sure the Internet LED turnsย๏ปฟBLUE on the First Router.
Note: You can now access the Internet through this Router using either WiFi or via LAN cable.
ย For WiFi Connection
- ย You will find the WiFi Name and Password at the bottom of the Router.
- LAN Connection: - To connect the internet cable, insert one end of the cable into theย YELLOW port of the Router and insert the other end into your Laptop/PC, etc.
- Note: - After the First Router successfully connects to the internet, the device system (firmware) starts receiving an update.
- Do not use the Main/Master Router for any other purpose during the update process.
- In the event of a Power failure or loss of Internet connection, the firmware update process might be interrupted. (Rest assured, it will resume automatically once power is restored or the internet connection is re-established.)
You will observe that all the LEDs on the device begin blinking with a combination of Purple and Blue lights.
Eventually, the Purple light becomes steady, followed by each LED transitioning to a stable Blue light, one by one.
This sequence indicates that your Main/Master Router has been successfully updated with the latest firmware.
๏ปฟ
How to Setup Second/Booster/Sub/Extender Router?

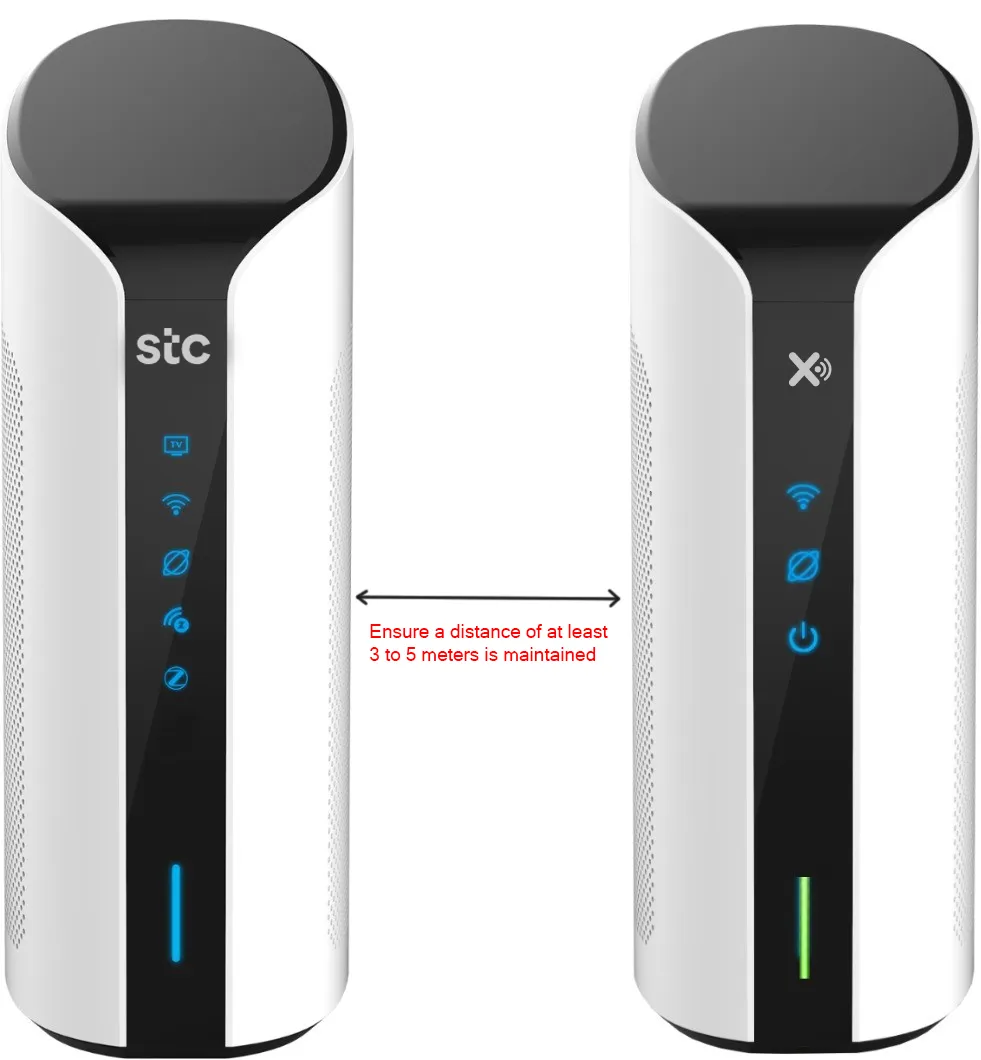

Note: - Kindly ensure to maintain a distance of at least 3 to 5 meters.

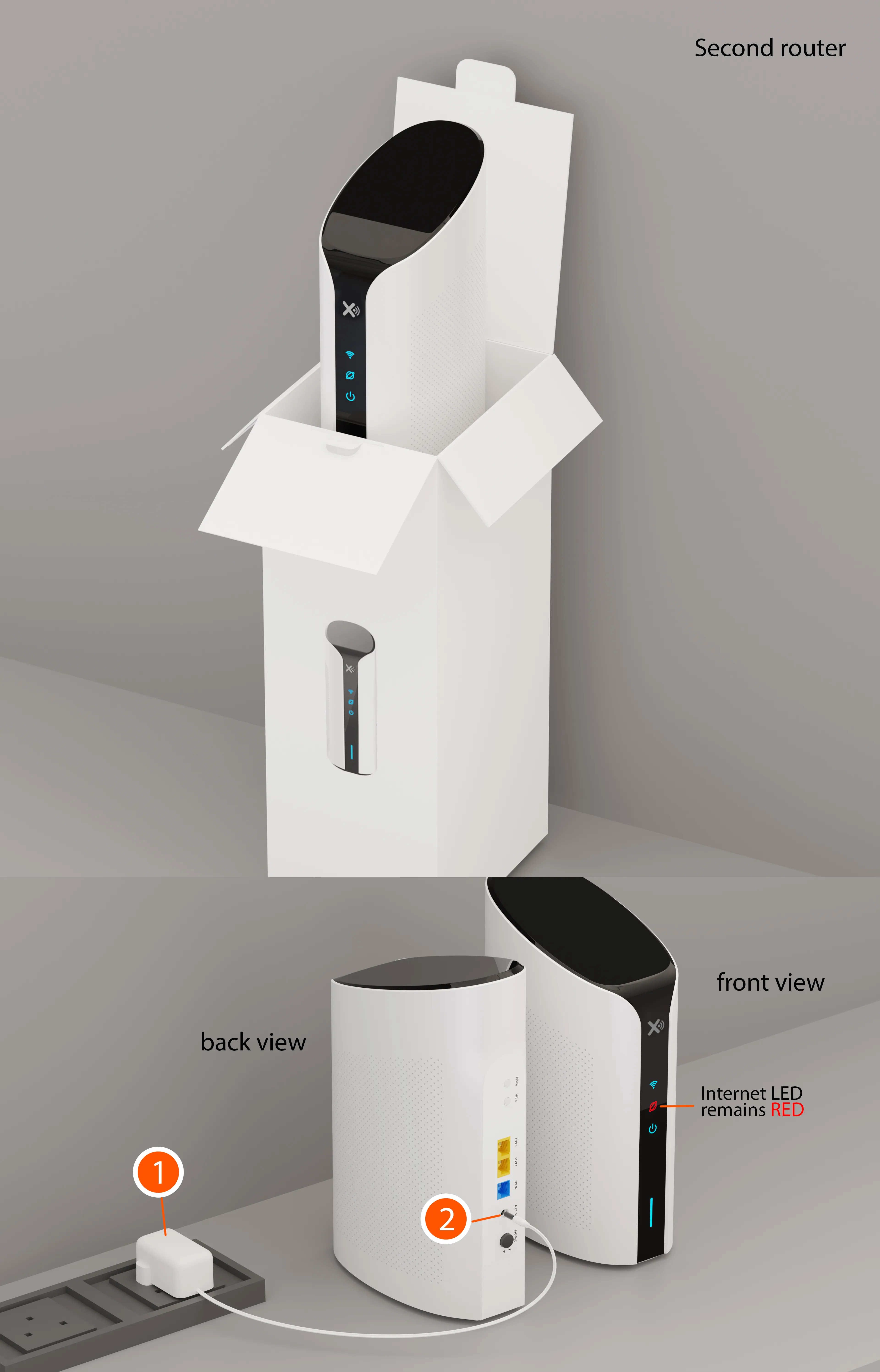

Step 03: Plug in the Power Adaptor
- Connect one end of the power adaptor to the wall socket and the other end to the back of the Second Router router (DC -12v)
- The LED lights will turn blue once the router has been plugged in. (within a few minutes)
Step 04: Establish the Mesh process with the Second/Booster/Sub/Extender Router.

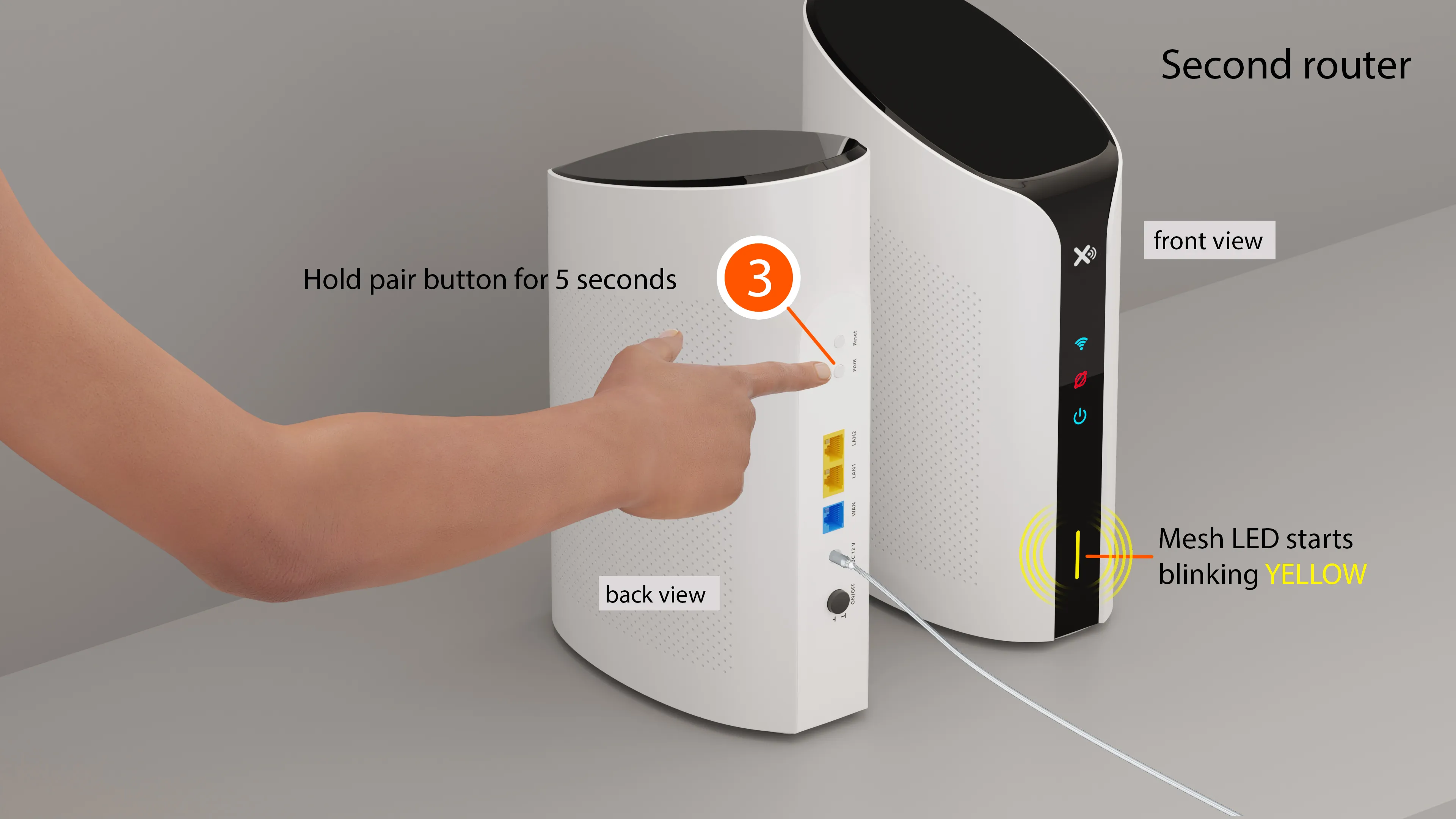

- Press and hold the Pair button on the back side of the Second/Booster/Sub/Extender router for 4 to 5 seconds, and then release it.
- Once you release the button, the Mesh LED on the second router will start blinking yellow, indicating that the Second/Booster/Sub/Extender router is now in pairing mode.
(Notify with a Yellow blinking Mesh LED)
Continuing
- Now proceed to the Main Device.

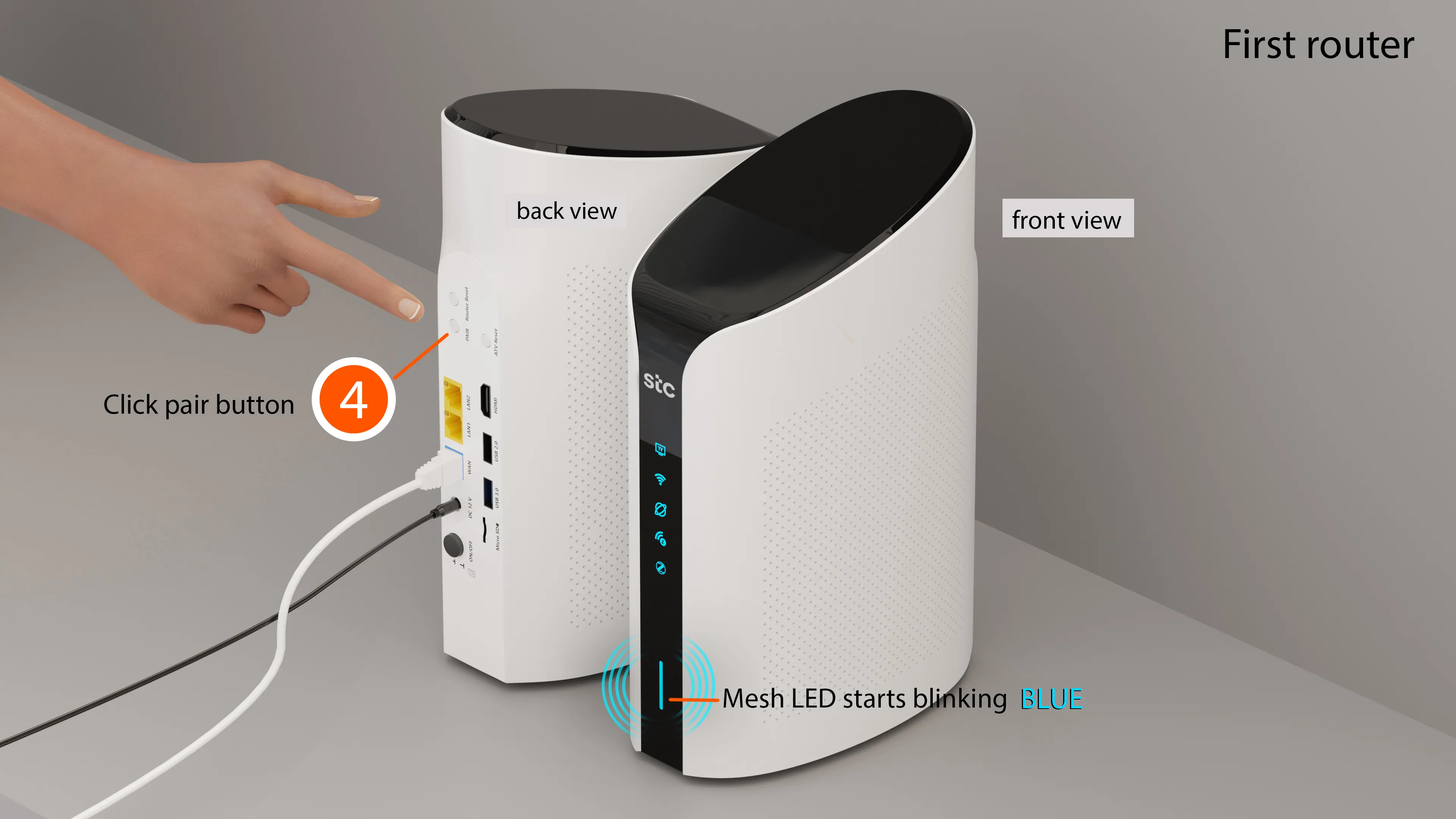

- Single press the pair button on the First Router. (Pair button is on the backside of the Main/master Router)
- This will activate the Mesh LED on the Main/master Router causing it to blink blue.
- Now, please wait patiently for about five to six minutes while the Second/Booster/Sub/Extender Router establishes a connection with the Main/Master Router.

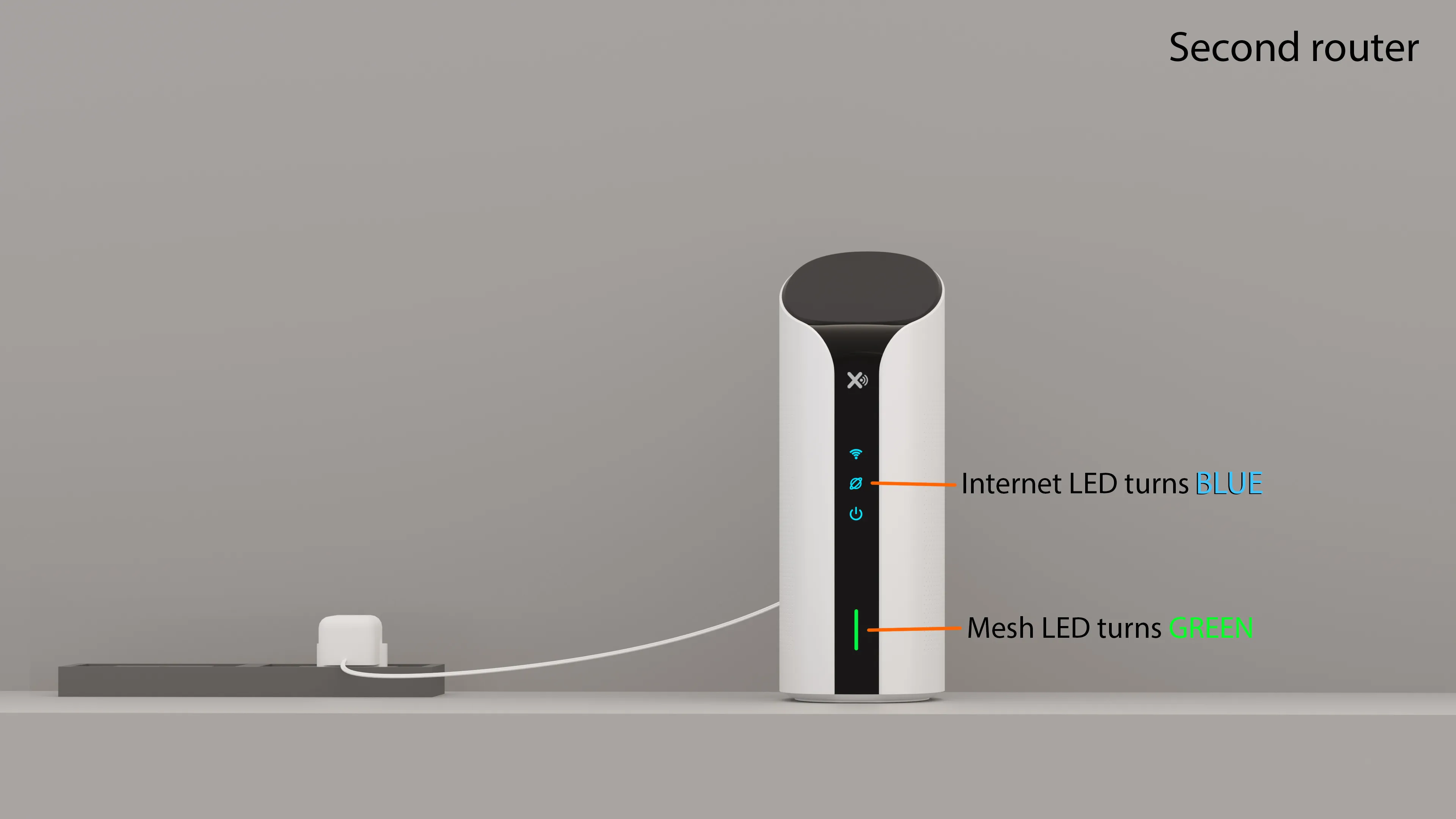

Once the connection is established, you will notice that the internet LED color on the Second/Booster/Sub/Extender Router turns Blue and the Mesh LED turns Green. This indicates a successful connection between the First Router and the Second Router.
After successfully connecting the Main/Master Router and the Second/Booster/Sub/Extender Router, the LED light on the Main/Master Router will turn BLUE and on the Second/Booster/Sub/Extender Router, it will turn GREEN.
