How to Set up Repeater Mode?

For the repeater setup, it is necessary for the Xunison router to have internet access.

Note: To access the Xunison application, please log in using your registered credentials.

When you log in to your Xunison Application, you'll be taken straight to the home gateway page.

To continue, select the home gateway and proceed further.



Once you have selected the home gateway, the smart home devices list will become visible.

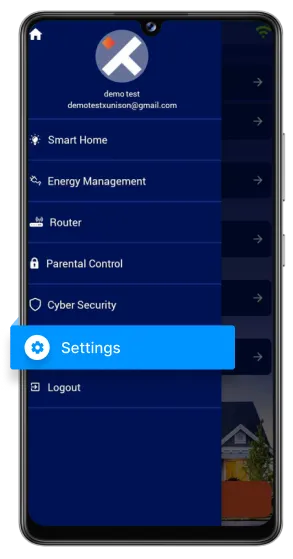

From the menu on the left, choose the option labeled "Settings".

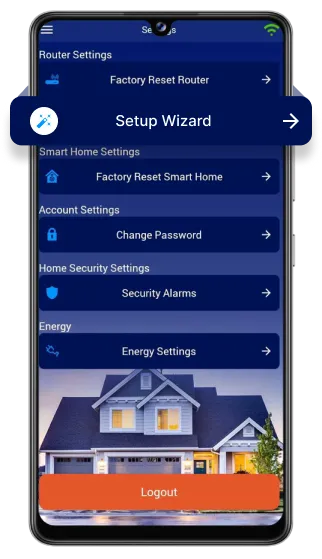

Navigate to the settings section and choose the "Set up Wizard" option.

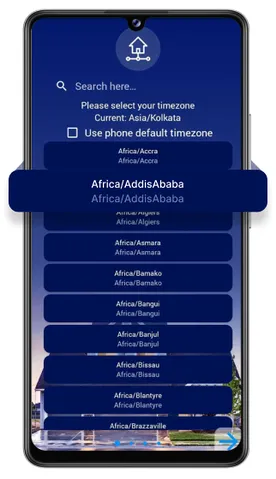

Select the "Timezone" option from this menu and then press the "->" button located on the right-hand side.



Tap on the "->" icon located on the right-hand side.

Please note that in this section, you have the option to change the router password.

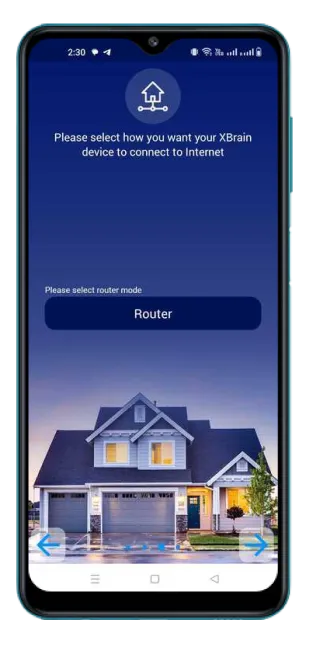

In this section, you can view the default mode of the router.

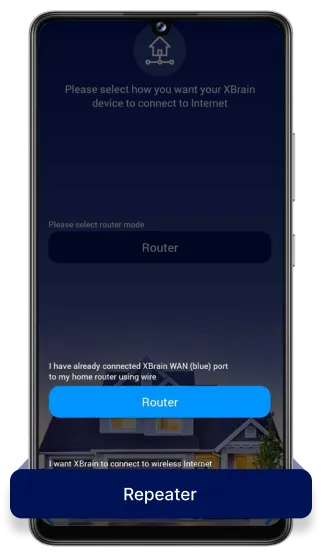

Tap on the "Router mode" option and choose the "Repeater" mode. Then, press the "->" button located on the right-hand side.

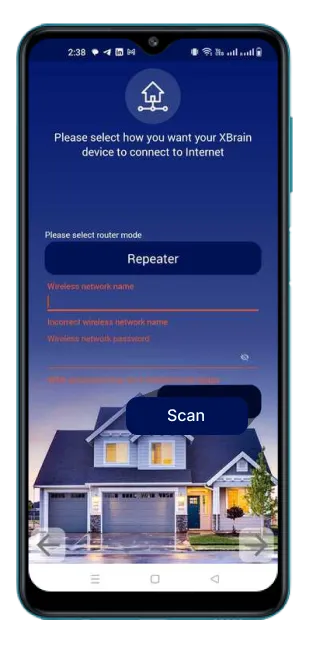

Click the "Scan" button.

Important:

Avoid choosing the XU SSID for setting up the repeater mode.

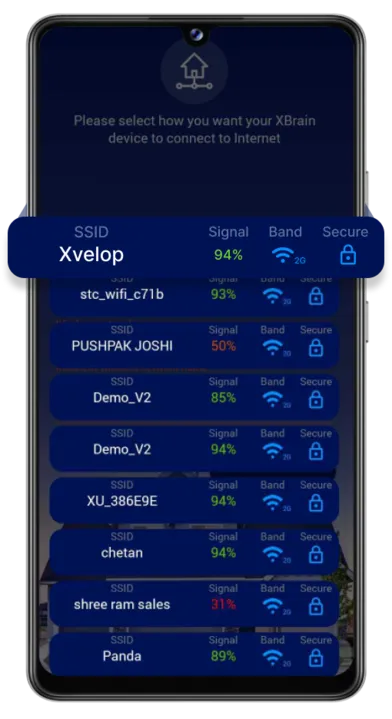

Choose the Wi-Fi network from the available options.

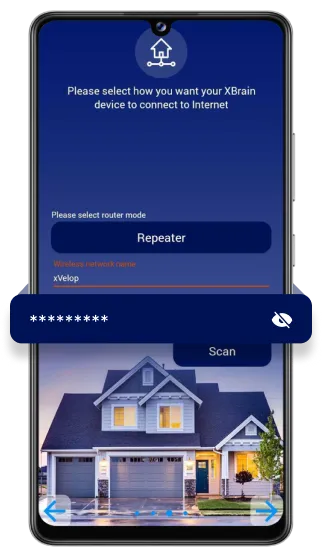

Input the accurate password for the chosen network in this field and click "->" located on the right-hand side.

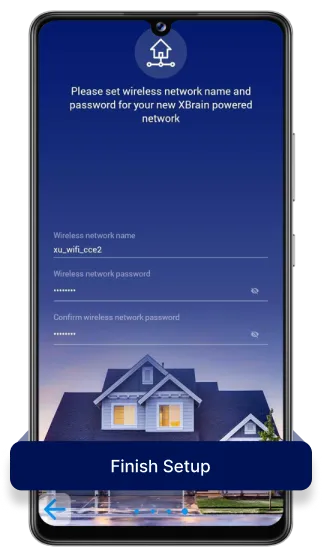

To finalize the setup process, click on the "Finish Setup" button, which may take approximately 6 to 7 minutes to complete the wizard.

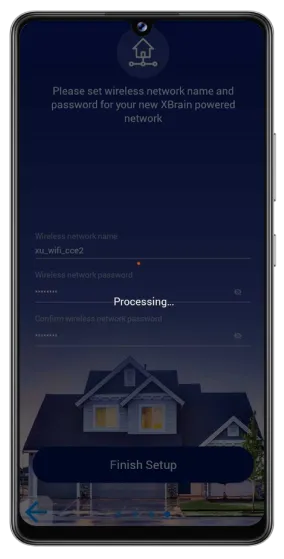

Your request is currently being processed.

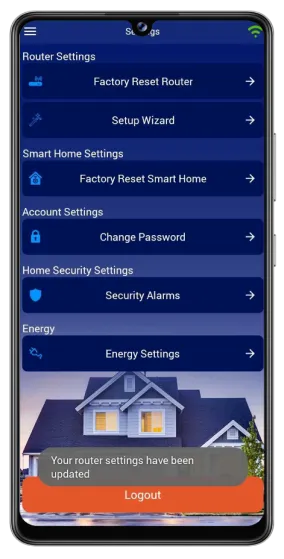

Finish the setup process.

Please be aware that once the repeater mode is configured, it is necessary to disconnect the WAN cable from the router.
