Include Z-Wave Device
Add a Z-Wave device to your setup for enhanced functionality and automation capabilities.
Note: īģŋ
īģŋIt is important to exclude Z-Wave devices before inclusion.īģŋ
īģŋFind out more by clicking the below button.īģŋ
Note:
Upon logging in to your Xunison Application, you will be automatically directed to the home gateway. To continue, select the home gateway and proceed further.

īģŋ

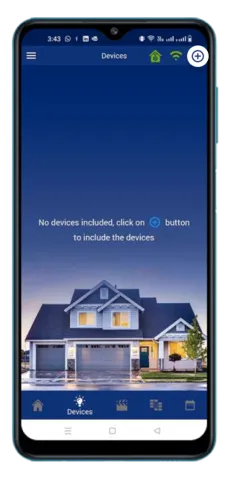

Once you have selected the home gateway, the smart home devices screen will become visible.
To add a new device, tap on the "+" icon located at the top right corner of the screen within the devices section.

īģŋ

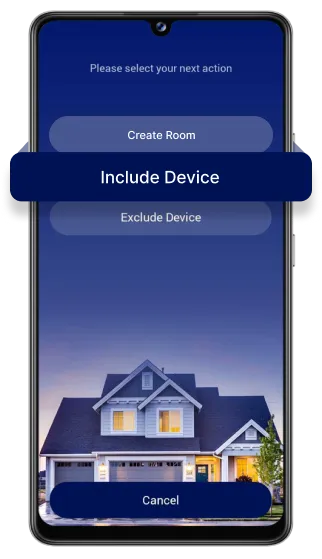

Click on "Include Device".

īģŋ

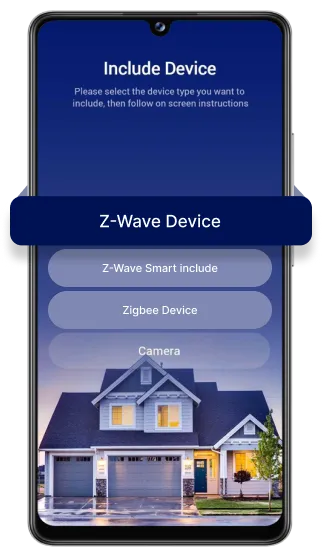

Select "Z-wave Device".

īģŋ

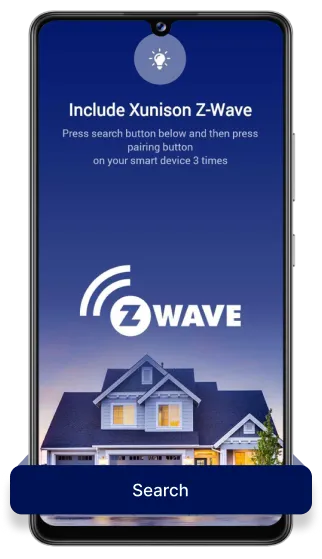

Click on the "Search" button, and within a span of 1.5 seconds, press the pair button on the Z-Wave device 3 times consecutively.

īģŋ

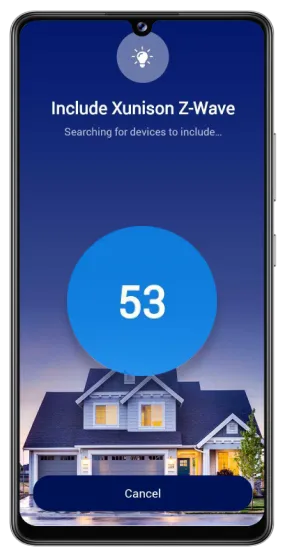

The system is currently searching for a Z-Wave device to include.

īģŋ

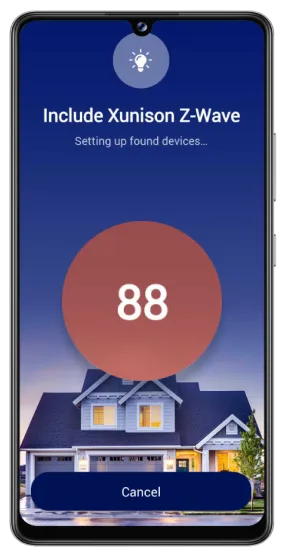

The device inclusion process is currently underway with a timeout set to 90 seconds.
Note : Blue: Device in pairing mode
Orangeīģŋ: Setting up the found device.

īģŋ

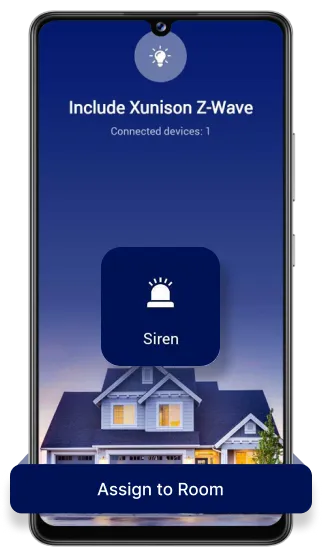

The device has been successfully included. In the image below, you can observe the addition of the "Siren" device.

īģŋNote:īģŋ
īģŋIf the room is not created, you will have to create one. Find out more by clicking the below button.

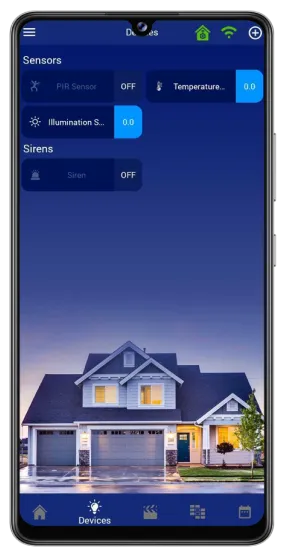

The device has been successfully added and will now be visible in the Devices section.
