How To Configure Mesh Mode?

In mesh mode, router configuration enables seamless connectivity by forming a network where multiple routers work together. This setup eliminates dead zones and ensures consistent coverage throughout the area. Mesh mode allows automatic handoff between routers, optimizing performance and providing a reliable and efficient wireless network for connected devices.

Follow the below steps to configure the mesh router.

Note: 1) Connect the master device with the power cable and the WAN cable.     2) Connect the slave device only with a power cable. 3) Keep a minimum distance of 3 to 4 meters and a maximum of 30 to 35 meters between the two routers.

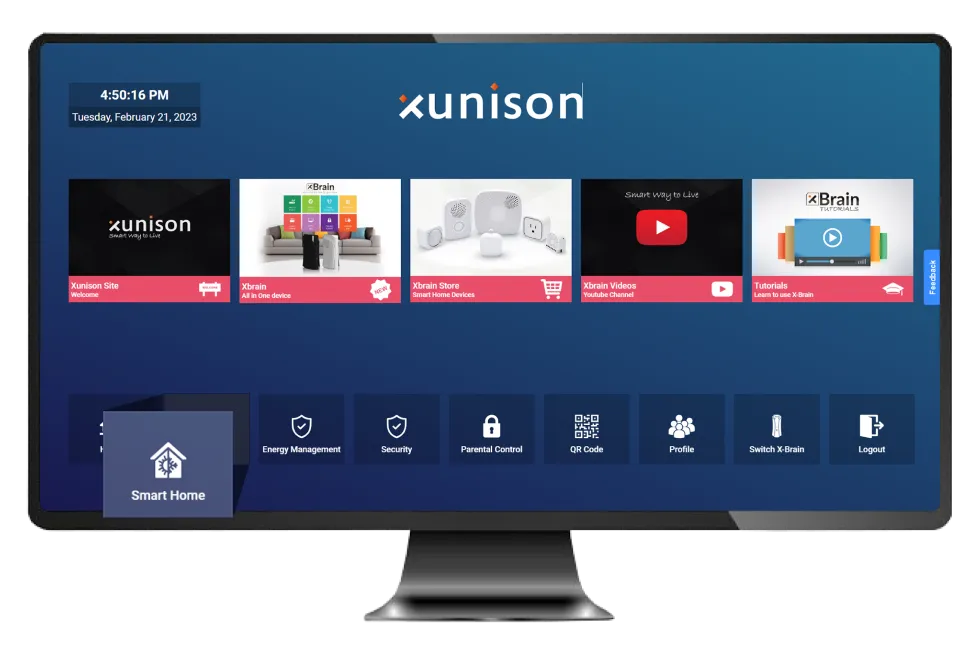

Select "Smart home" from the dashboard.

Select "Settings" from the left navigation bar.

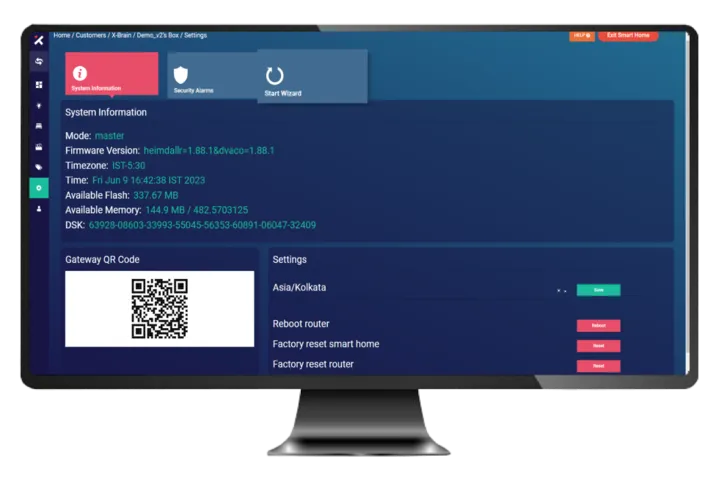

Click on "Start Wizard".

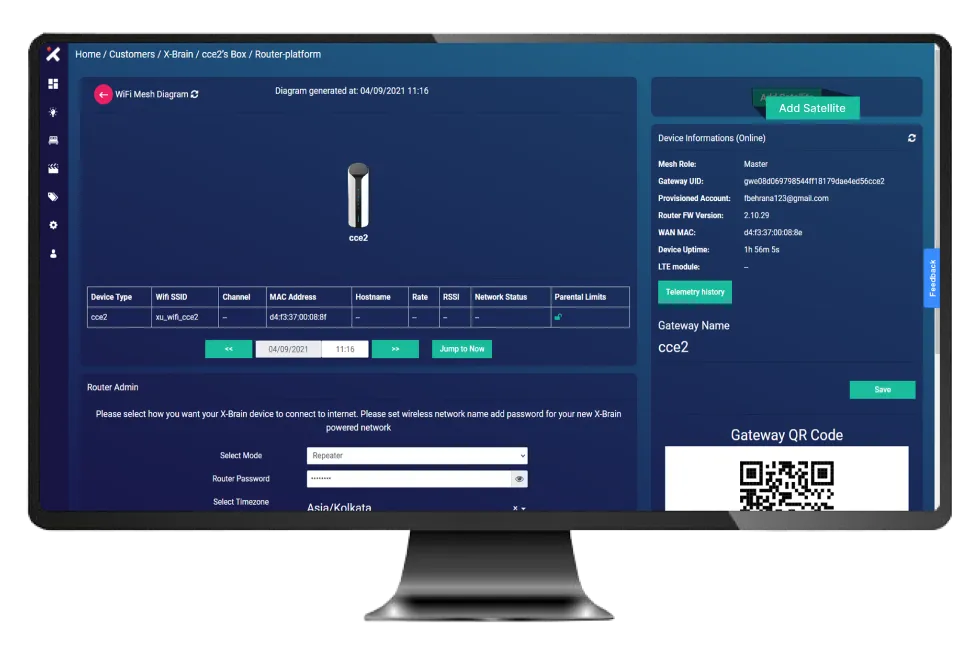

Click "Add Satellite".

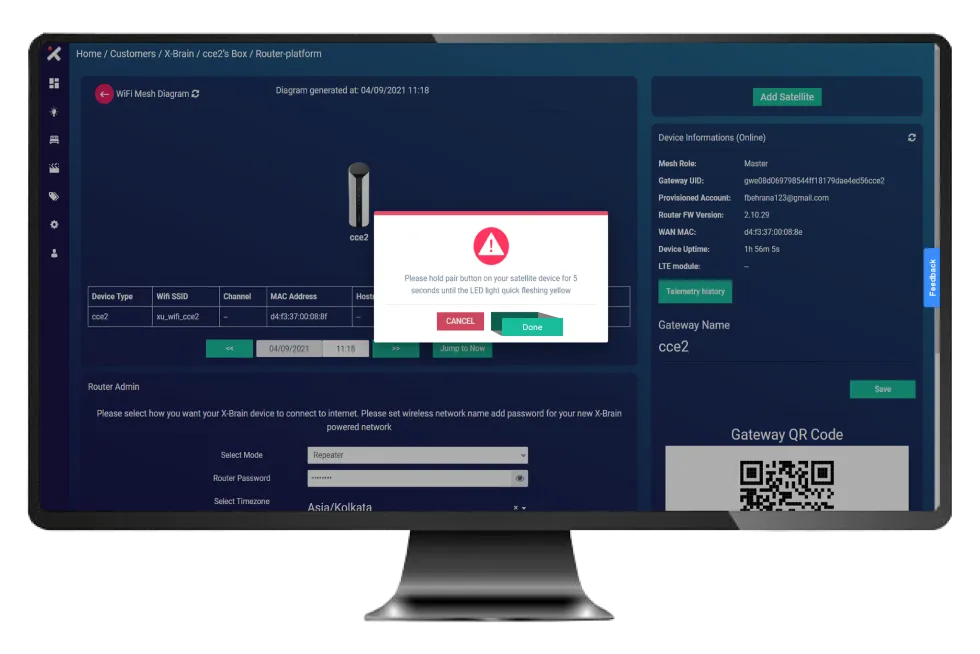

Press and hold the pair button for 10-15 seconds on the slave device. Click "Done".

Note: Yellow light will blink constantly (it indicates that the paring process has started)

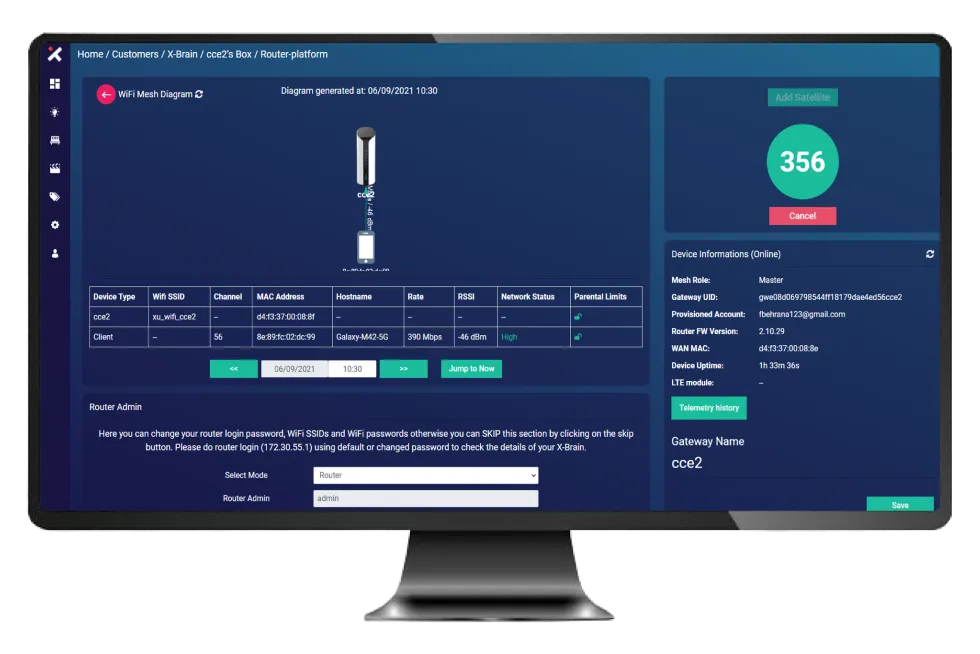

The device will show the stable purple/orange or green Mesh LED when the Mesh is configured successfully. The timer will be up to 360 seconds.

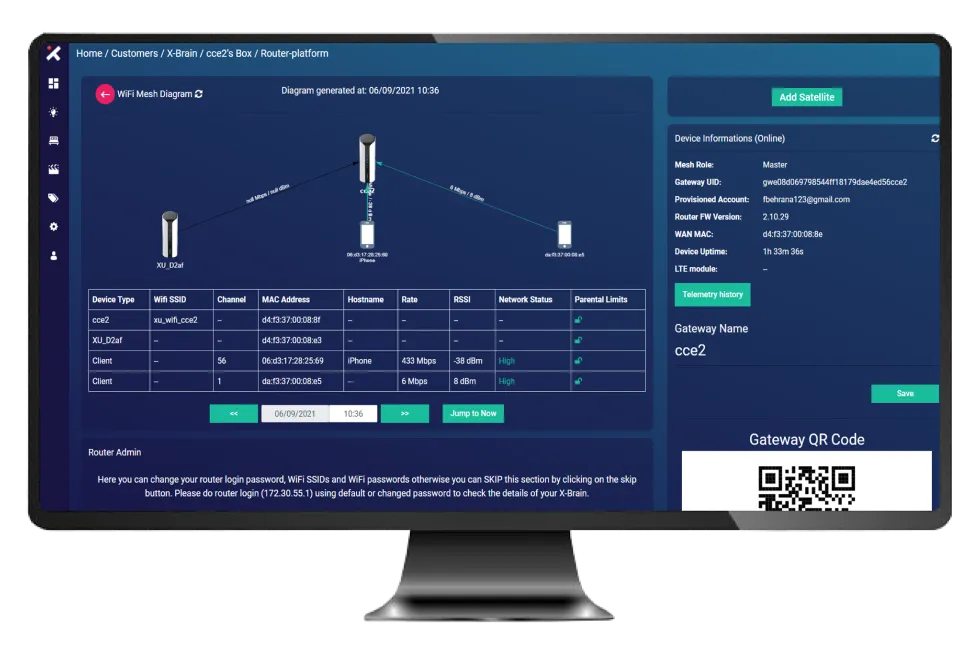

Mesh is established successfully.

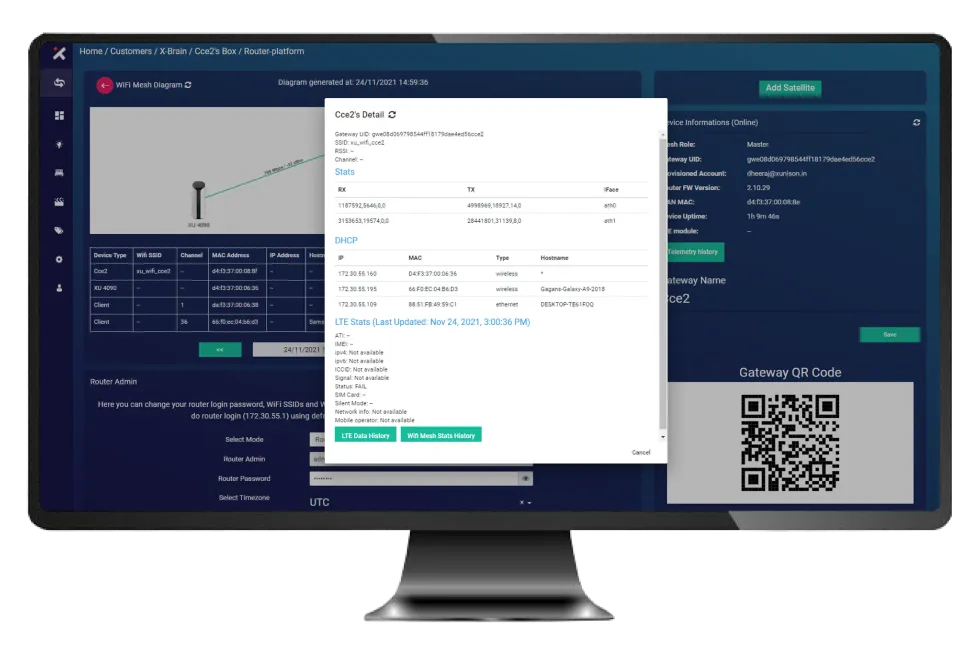

Here you can check master device details by clicking on the master gateway.

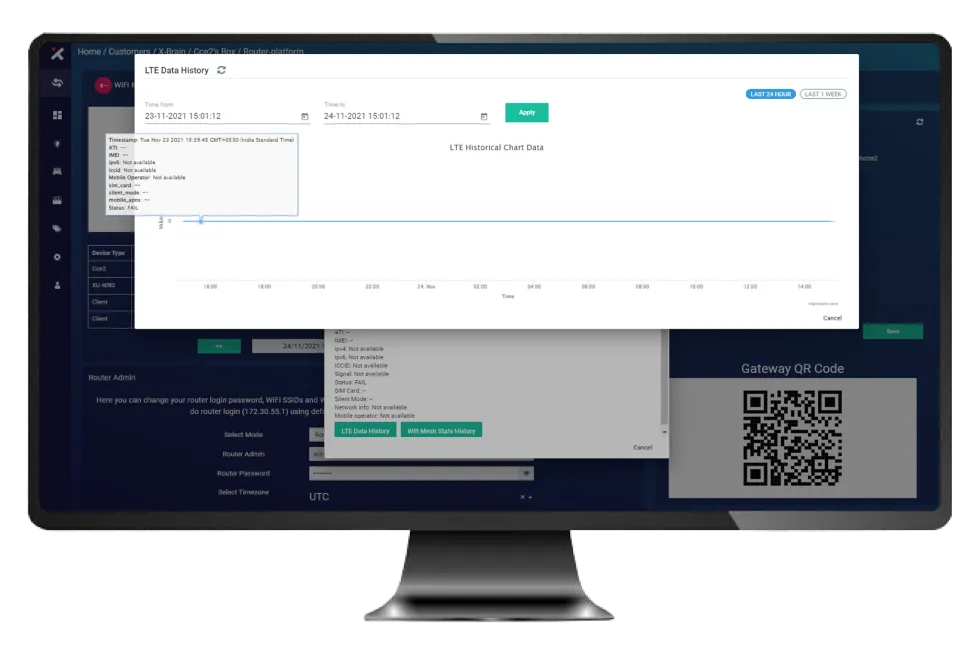

Here you can check the LTE data history of the master device

Click on LTE data history.

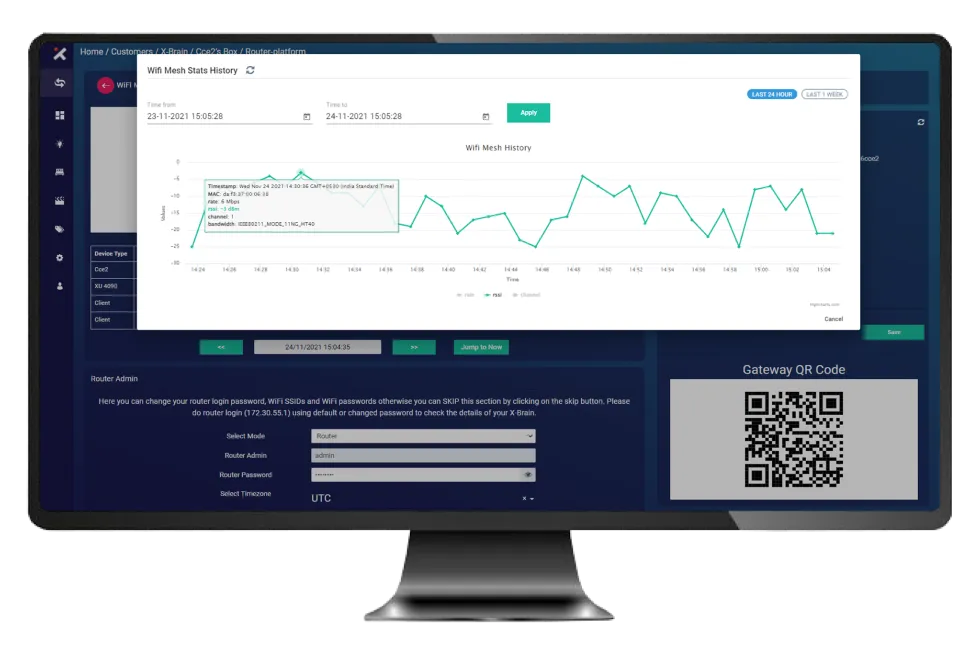

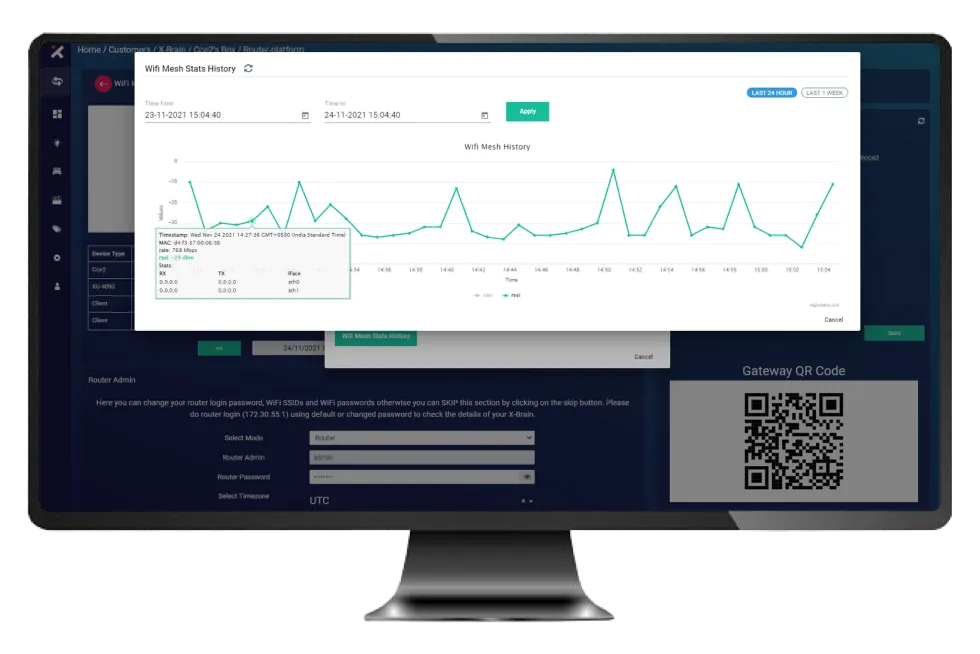

Here you can check the WiFi mesh data history of the master device.

Click on WiFi mesh data history.

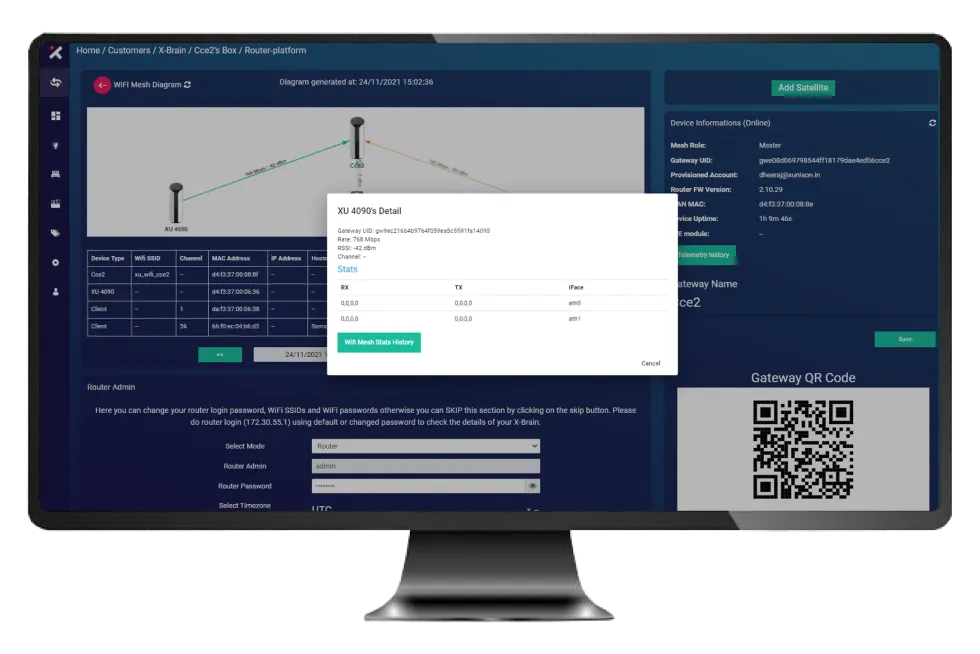

You can check slave device details by clicking on the slave device.

Click on WiFi mesh data history to view the graph.

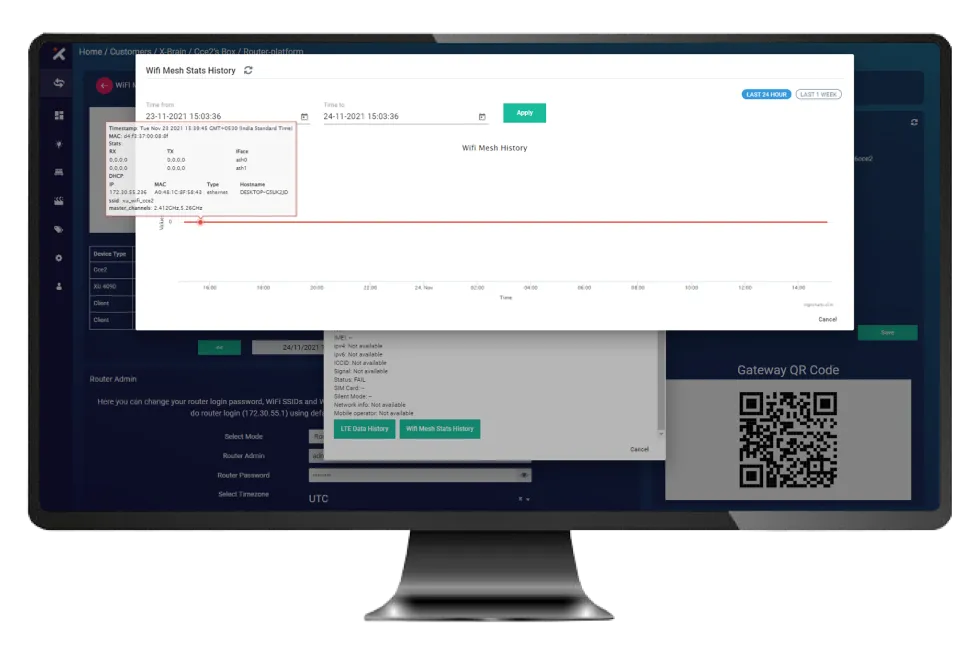

Here you can check the WiFi mesh data history of the Slave device.



Here you can check the wifi mesh data history of the slave device by clicking on the connected device.
